Advantage
1. High efficiency and energy saving.
2. The pump impeller is submerged in water, and there is no need ofbottom valve, water diversion and shaft vacuum; it can be started direct.ly, which is convenient and reliable.
Pressure(P): 0.3-1.22MPa
Speed (n): 2950/1475r/min

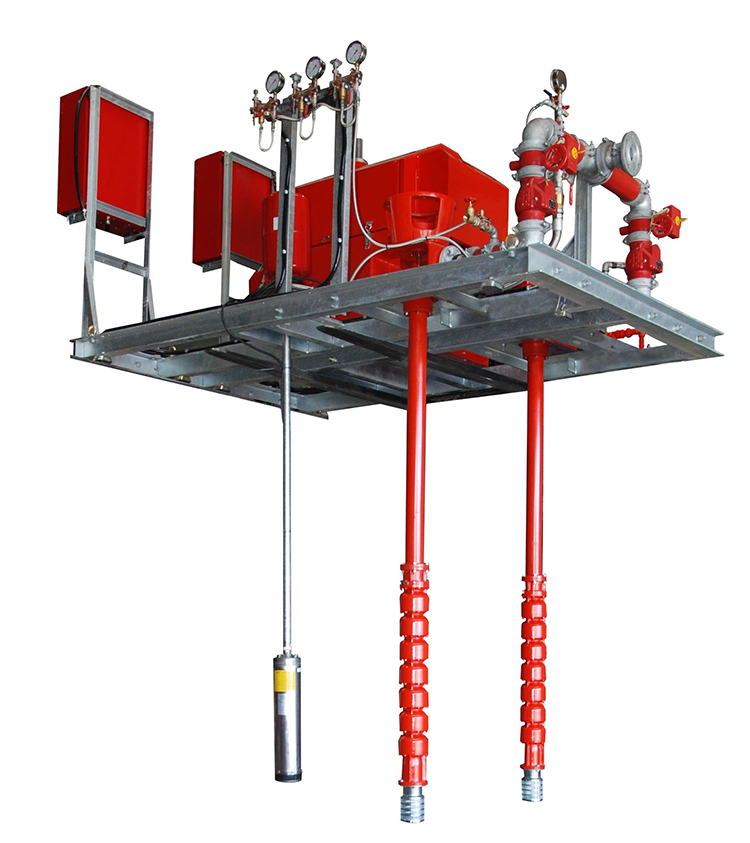

3. It can be installed directly on the pool with only two support beamsand channel steel beams that support and fix it, No suction pipeline isrequired.
4. The maximum diving and water absorption height of the pump canreach about ten meters. lt has a vertical structure, occupies a small areaand requires less infrastructure investment.
Introduction：
The working principle of the pump: the motor drives the impeller working under the liquid to rotate through the shaft. After the fluid obtains energy through the impeller, it changes direction through the space guide vane. direction outflow.

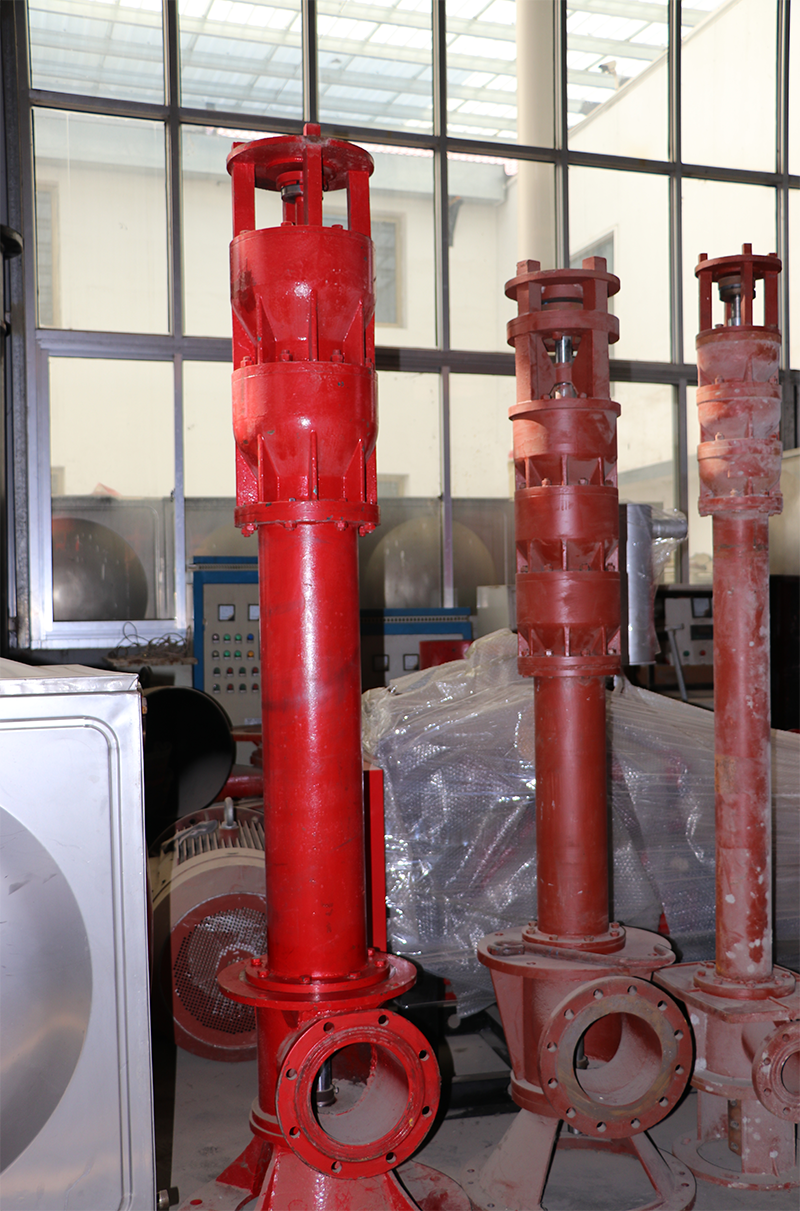

The water pump is composed of two parts: the central rotating body and the pump body. Among them, the rotating body part is composed of impeller, shaft, sleeve type rigid coupling (coupling joint and coupling sleeve), shaft sleeve, elastic pin coupling and so on. The pump body part is composed of filter screen, space guide vane, outer tube, rubber bearing frame, base, water outlet elbow, bearing body, motor seat and so on.
The whole part of the pump is connected with the water outlet elbow, fixed by the bottom plate, the double rolling bearing on the upper part of the rotating body, and the middle guide bearing parts are connected with the water outlet elbow, and fixed by the bottom plate. The double rolling bearing above the rotating body part is supported by the middle guide bearing part and the lower guide bearing part in the space guide vane.
![[field:text/]](/uploads/231017/2-23101G52P1O6.jpg)
Our company specializes in the design, development, manufacture and sale of universal fluid equipment pump manufacturers.
