Operation
Pneumatic water supply equipment is the use of non-toxic capsules as a new type of gas and water isolation equipment, once inflated, running all year round. Start the replenishment pump when working, water chamber water, water pressure rises, the gas chamber is compressed diaphragm elongation; when the water pressure drops, the gas in the air chamber expands and the diaphragm contracts, pressing the water chamber outlet. This cycle, through the electric contact pressure gauge and electric control box control water pump operation, to achieve rated pressure and continuous water supply.
In case of fire, when the hydrant is opened, the fire filling water column is sprayed immediately. At the same time, the electric contact pressure gauge sends a signal to start the fire pump for the required fire water.
characteristic

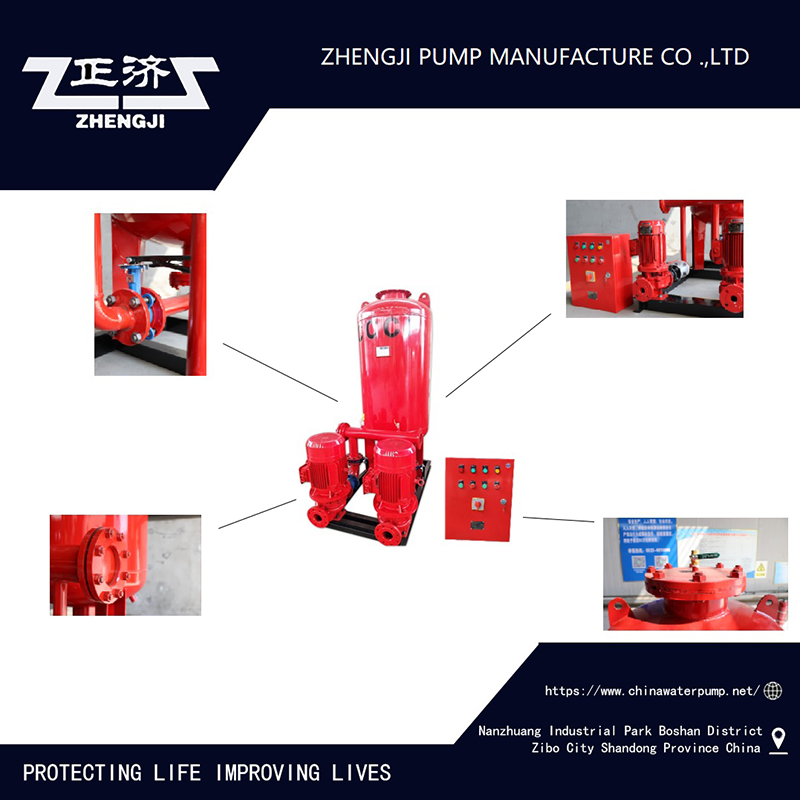

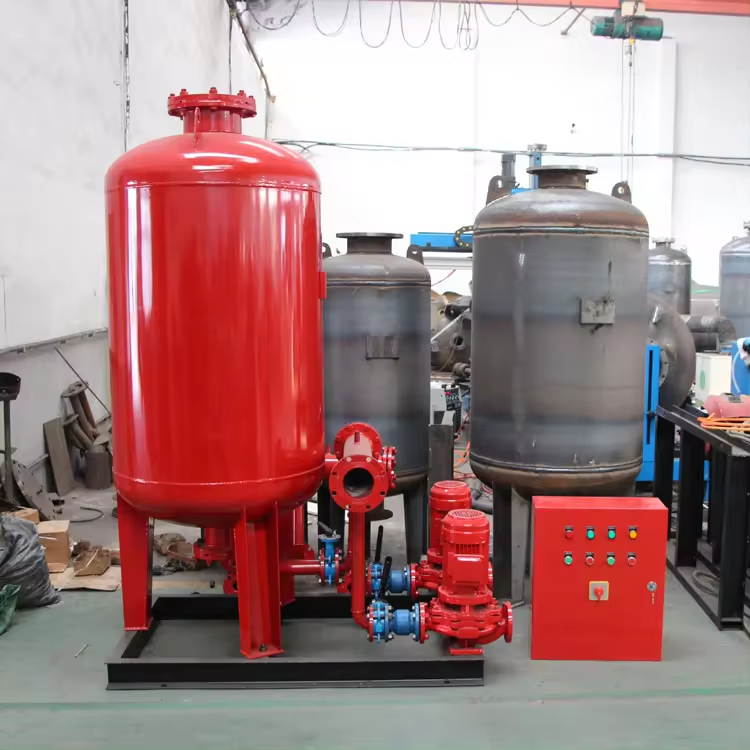

1, pump, electric control cabinet, diaphragm pressure tank, combined pipe network four in one, and equipped with vibration isolator, no need to embed the foundation hole, the designer only need to calculate the parameters can check the equipment model, basic size, etc. Electrical designers do not need to design the control line, only design the pump room and the line to the equipment. Convenient selection can greatly shorten the design period and construction personnel construction time.
2, diaphragm type air tank one-time inflation durable, water gas isolation can prevent water pollution.
3, the equipment covers a small area, investment, automatic operation, no special care.
4, the equipment has double power interface, double power automatic (manual) switching, the equipment can be made according to the design requirements.
5, with automatic protection and failover function. Any failure of one pump (electrical or hydraulic) can start the backup pump.
6, can be connected with the fire center (according to the design needs).
7, can be selected according to the needs of customers tank, pressure regulator, control function.
8, electrical main vitality parts using domestic or imported famous brand enterprise products, reliable quality, stable operation.
![[field:text/]](/uploads/231017/2-23101G531354T.jpg)
Our company specializes in the design, development, manufacture and sale of universal fluid equipment pump manufacturers.
